Time Management and Control Flow

EtaCtrl acts as the central coordinator that drives the interaction between the agent, the environment, and any optional components such as external models. It controls when the environment performs a step, when the agent receives observations, and when actions are applied. Understanding this control flow is important when integrating custom environments or interpreting logged data.

Control Loop

The sequence diagram below shows the full data flow for a play() call (the same structure applies during learn()). The participants are:

• EtaCtrl — the outer controller that manages the episode loop.

• Agent — the control algorithm that maps observations to actions.

• Env — the environment under control.

• ExternalModel — an optional model called from inside the environment step (e.g. an FMU simulator or Pyomo model).

• Scenario Manager — provides pre-loaded time-series data to the environment.

Sequence diagram of the EtaCtrl control loop during play().

The episode starts with reset(). The environment loads scenario data at index t=0, performs any internal initialisation, and returns the initial observations to EtaCtrl. No time has elapsed at this point, the reset corresponds to the state before the first sampling period begins.

The loop then runs until n_steps reaches n_episode_steps. In each iteration:

1. EtaCtrl calls agent.predict(observations) to obtain actions for the current timestep.

2. EtaCtrl calls env.step(actions).

3. Inside the step, the environment first loads scenario data at index t = n_steps, then calls specific environment code in BaseEnv._step

4. The environment increments n_steps, loads scenario data at the next timestep and returns the new observations and the reward.

Therefore, the observations returned after the k-th step carry scenario data at index t = k + 1, and actions computed from those observations also target timestep t = k + 1. The last step sets n_steps = n_episode_steps, so the last scenario data index used is t = n_episode_steps.

Scenario Data and Time Indexing

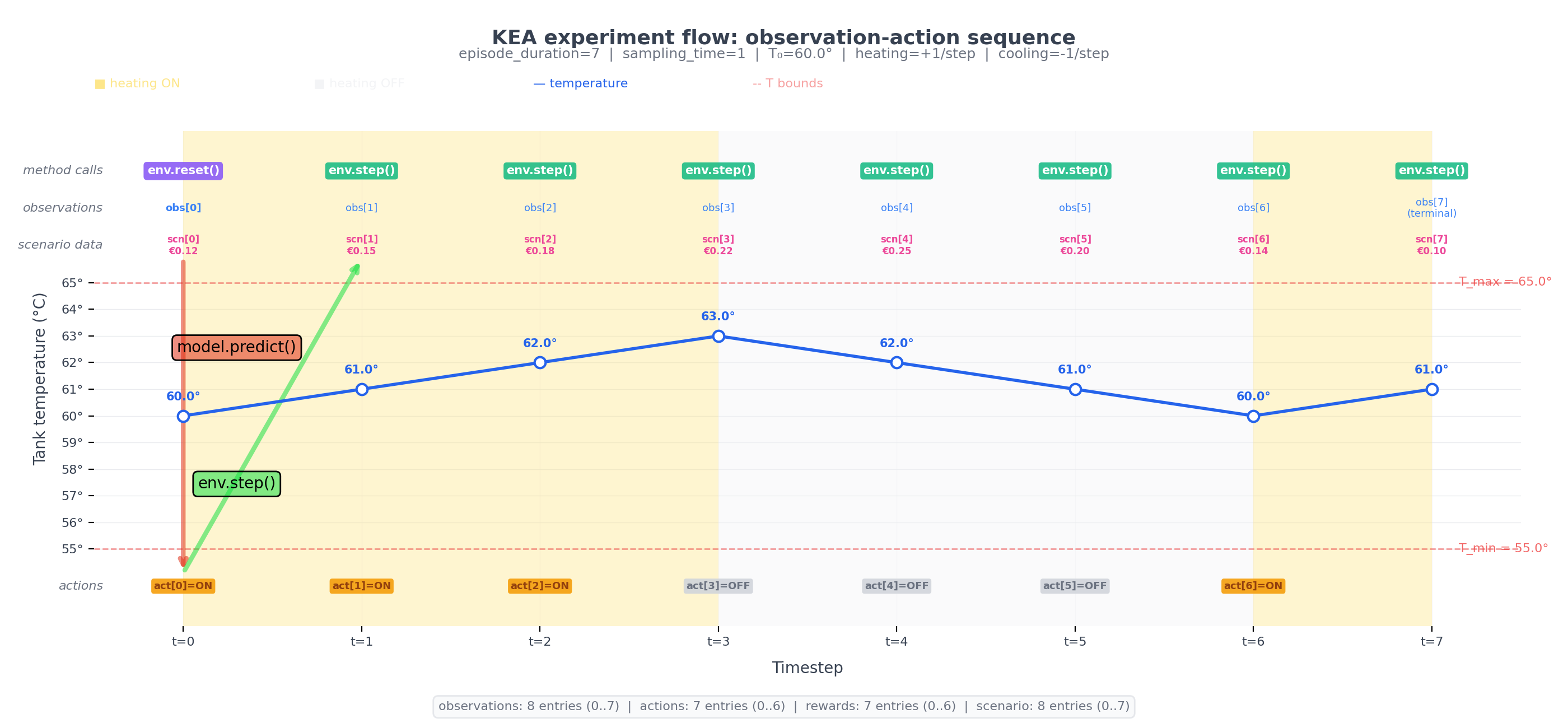

The following diagram illustrates the time indexing concretely using a tank heating example. The temperature trace shows how the state evolves; the indexed markers on the top and bottom show at which time index observations are reported and actions take effect.

(png, hires.png, pdf)

The key points to take away from the diagram:

• Reset does not advance time. The reset returns the observation at t=0 without consuming a sampling period.

• Each step advances time by exactly one sampling period. The step from t=k to t=k+1 is where physical time passes.

• The last observation index is t = n_episode_steps. Scenario data must therefore cover at least n_episode_steps + 1 data points (indices 0 through n_episode_steps).

Timing Assumptions

The EtaCtrl framework inherits the synchronous, single-agent execution model of gymnasium and stable_baselines3: time advances in fixed steps and the next step cannot begin before the current one returns. This implies the following assumption:

Note

The computation time of the agent must be significantly shorter than the sampling time of the environment. If this is not the case the framework’s notion of discrete, synchronous timesteps breaks down and results will no longer correspond to real-time behaviour.

In practice this is satisfied whenever reinforcement learning inference or rule-based control runs in software (microseconds to milliseconds) and the physical process is sampled at intervals of seconds or more.

Actuation Delay

If the application requires modelling a delay between when an action is decided and when it takes effect — either to represent a physical actuator latency or a deliberate hold-over logic — this can be implemented as an environment wrapper without modifying the core environment:

import gymnasium as gym
import numpy as np

class ActuationDelayWrapper(gym.Wrapper):
    """Delays actions by *delay* timesteps."""

    def __init__(self, env: gym.Env, delay: int = 1) -> None:
        super().__init__(env)
        self._delay = delay
        self._action_buffer: list = []

    def reset(self, **kwargs):
        self._action_buffer.clear()
        return self.env.reset(**kwargs)

    def step(self, action):
        self._action_buffer.append(action)
        if len(self._action_buffer) <= self._delay:
            delayed_action = np.zeros_like(action)
        else:
            delayed_action = self._action_buffer[-1 - self._delay]
        return self.env.step(delayed_action)

This approach requires that the agent is still fast enough relative to the sampling time — the wrapper only shifts which action is applied, it does not compensate for slow agents.
